LK-AMPD-S Mai Girma Mai Saurin Saurin Ƙaƙwalwar Microwave InGaAs Mai daukar hoto
- Babban Gudu, Faɗin Bandwidth
- Incorporated Bias-T
- Haɗin O/E Hybrid
- Babban Riba, Karancin Surutu, Watsa Labarai
- Hermetically Rufe, SMA Connector
- Low Dark Current, babban sigina-zuwa amo rabo.
- Karamin Siffar Factor.
Samfur Description
LK-AMPD-S shine matasan InGaAs photodiode da ƙananan ƙararrawa, wanda aka tsara don amsa mai fadi daga 1000 zuwa 1650nm kuma yana ba da 15 dB RF riba. Yana ba da babban aiki mai sauri tare da bandwidth na 12GHz da 18GHz, kuma ana samun wutar lantarki ta hanyar +5V.
Wannan module ɗin ya dace da daidaitaccen yanayin guda ɗaya na fiber 9/125μm kuma yana da mai haɗin SMA tare da wasan impedance 50 ohm.
LK-AMPD-S an rufe shi ta hanyar hermetically don kariyar muhalli kuma yana da ƙira mara nauyi, tare da taro ƙasa da gram 23. Ya dace da Ƙuntatawar Abubuwan Haɗari (RoHS) Umarnin 2.0, yana tabbatar da dorewar muhalli da riko da ƙaƙƙarfan ƙa'idodin aminci.
Technical dalla
| Na Musamman & Cikakkun Mahimman Kima | ||||
|---|---|---|---|---|
| siga | Alama. | irin | Rating | Unit |
| Matsaka yawan zafin jiki na ajiya | TSTG | -45 + 85 | -55 + 100 | ℃ |
| Kewayon yanayin yanayin aiki | TC | 25 | -40 + 85 | ℃ |
| Bias Voltage | VR | +5 | + 5 + 9 | V |
| Ƙarfin shigar da gani | Fil | 0 | + 10 | dBm |
| Ƙona Ƙarfin gani | PB | - | + 13 | dBm |
| zafin jiki mai siyar da guba | Tp | 280 (10s) | 330 (10s) | ℃ |
| Halayen Lantarki / Na gani (TC = 22 ± 3 ℃) | ||||||
|---|---|---|---|---|---|---|
| siga | Alama | Yanayin Gwaji | Darajojin ma'auni | Unit | ||
| Tashar Wavelength | λ | - | 1000 zuwa 1650 | nm | ||
| Yanayin Yanayi | - | - | X - Band | Ku - Band | - | |
| Ƙaramin siginar bandwidth | f-3dB | TC = 22 ± 3 ℃ | 0 zuwa 3 | 0 zuwa 8 | GHz | |
| Amsawa | Re | VR = 5V, Pin = 10mW | λ = 1310 nm | ≥ 0.8 | ≥ 0.85 | A / W |
| λ = 1550 nm | ≥ 0.85 | ≥ 0.8 | ||||
| Girman Kwanciya | A | TC = -45～+85 ℃ | ≤ ± 2 | dB | ||
| Ƙarfin gani jikewa | Ps | VR = + 5 V, λ = 1550 nm AC Modulated |
10 | dBm | ||
| Samun Siginar RF (Na Musamman) | G | - | 15 ± 1 | dB | ||
| Ƙarfin Fitar da Saturation RF | Pdaga | - | +3 | dBm | ||
| Fitowar VSWR | VSWR | - | 2 | - | ||
| Sakamakon fitarwa | RL | - | 50 | Ω | ||

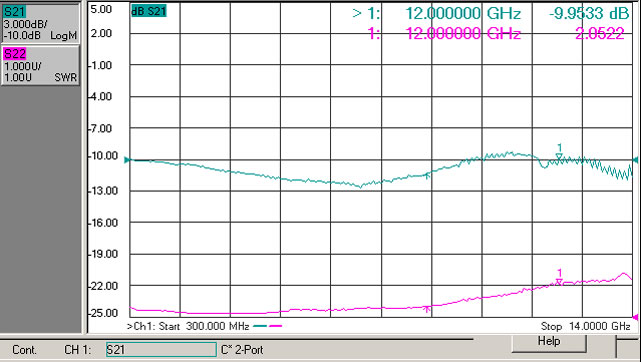

Hannun Hannun Amsa Na Musamman
(Fig. 1 X - Amsar Mitar Hoto na Band)
( siffa . 2 Ku - Amsar Mitar Hoto na Band)

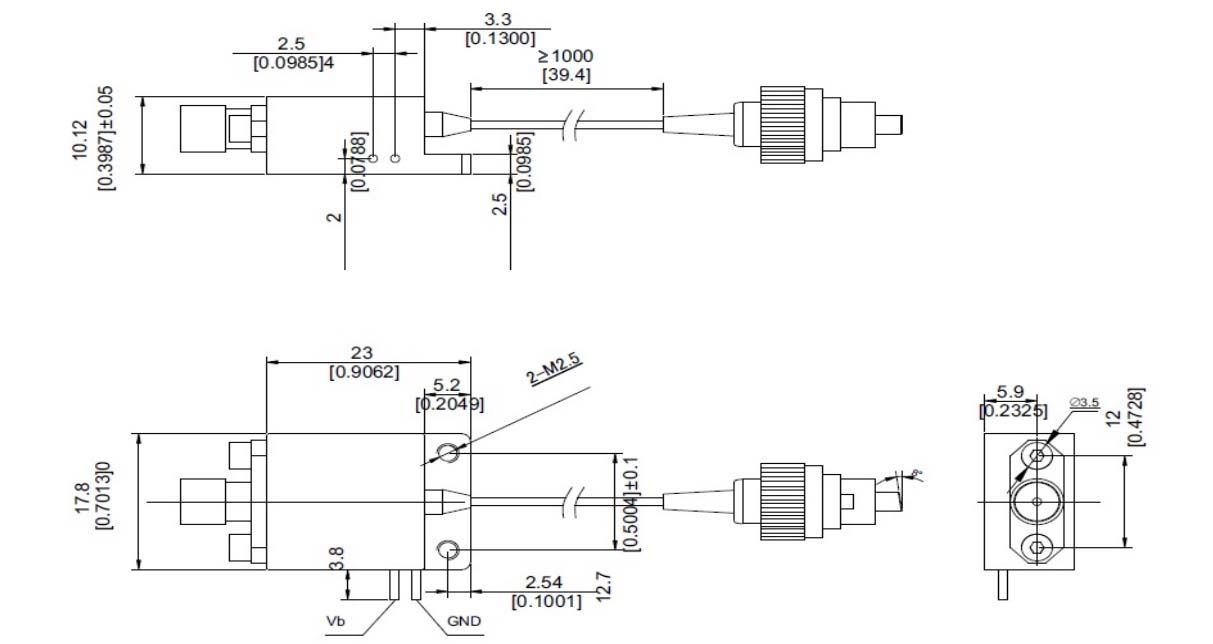

●Girma da Fil (Raka'a:mm[ inch])
Mai haɗin RF: SMA
●odar Information
Zane 1:
| code | Siginar RF Gain | ra'ayi |
| S | 15 dB | Na Musamman & Mitar Cibiyar |
Zane 2:
| code | Analog Bandwidth |
| X | 0 zuwa 3 GHz |
| Ku | 0 zuwa 8 GHz |
Zane 3:
| code | Connector Type | ra'ayi |
| N | Babu Mai Haɗi | Single-yanayin 9/125 μm fiber pigtail |
| A | FC/APC | |
| P | FC / PC |
● Hattara
Radius na lanƙwasa fiber ba ƙasa da 20 mm don guje wa lalacewar fiber ba.
Tabbatar cewa fuskar haɗin fiber tana da tsabta kafin haɗa shi zuwa opto-circuit.
Ana buƙatar kariyar ESD mai dacewa a cikin ajiya, sufuri da amfani.
Dukkanin daidaitattun na'urorin mu na hoto za a iya keɓance su zuwa kayayyaki!
Aikace-aikace
Gudanar da Bayanan Radar
Yakin lantarki
Ma'aunin Antenna
Sadarwar Fiber Optic
Tsaro da Kulawa
