LK-NYC04D DML DFB Mai watsawa
- DML DFB Laser Technology
- Maɗaukaki-Maɗaukaki-Range
- Bandwide mafi kyau fiye da 4GHz
- CWDM Wavelength Compatibility
- Low ikon amfani
- Maras tsada
Samfur Description
LK-NYC04D DML Transmitter ya ƙunshi da farko na DML DFB Laser, da'irar sarrafa wutar lantarki ta atomatik, da'irar juyar da wutar lantarki, da kewayar nuni. Wannan mai watsawa yana fasalta tsayin laser na DML wanda yayi daidai da ma'aunin CWDM, musamman a 1270nm, 1290nm, 1310nm, 1330nm, 1350nm, da 1370nm.
Yana ba da bandwidth mai daidaitawa wanda ya wuce 4GHz kuma yana iya isar da ƙarfin fitarwa wanda ya wuce 2mW. Na'urar tana aiki akan ingantaccen samar da wutar lantarki guda ɗaya kuma an ƙirƙira shi don aiki da dogaro a cikin kewayon ƙarfin lantarki daga +7V zuwa +36V. Bugu da ƙari, ƙirar tana sanye take da mai nuna alama wanda ke tabbatar da daidaitaccen yanayin samar da wutar lantarki da na wutar lantarki na gani, yana sauƙaƙe sauƙi na kulawa da kulawa.
Technical dalla
Cikakken Matsakaicin Matsakaici
| siga | alama | Min. | Taimako. | Max. | Unit |
| Storage zazzabi | TSTG | -40 | + 25 | + 70 | ℃ |
| Operation zazzabi | TC | -20 | + 25 | + 55 | ℃ |
| Ƙarfin shigar da RF1 | Pin | - | 0 |
+ 17 | dBm |
| irin ƙarfin lantarki | Vin | +7 | + 12 | + 36 | V |
Ƙayyadaddun gani da Lantarki (TC = 25 ℃)
| siga | model | alama | Min. | Taimako. | Max. | Unit | ra'ayi |
| Zango | UC | λ | 1270 | 1310 | 1370 | nm | ITU Standard |
| LC | - | CWDM | - | ||||
| Mitar (3dB) | - | f3dB | 0.1 | - | 4 | GHz | - |
| Ƙarfin fitarwa na gani | - | P | - | 1 | - | mW | - |
| Dangin ensarfin Yanayi | UC | rhine | - | - | -150 | dBc/Hz | - |
| LC | - | - | -155 | ||||
| VSWR | - | VSWR | - | - | 2 | ||
| Shigar da 1 dB Compression | - | - | - | + 10 | - | dBm | - |
Samar da Wutar Lantarki (TC = 22± 3℃)
| siga | Min. | Taimako. | Max. | Unit |
| irin ƙarfin lantarki | +7 | + 12 | + 36 | V |
| A halin yanzu(2) | 0.03 | 0.1 | 0.15 |
A |
(1) Yanayin gwaji: Vin=+12V.
● Bayanai na yau da kullun

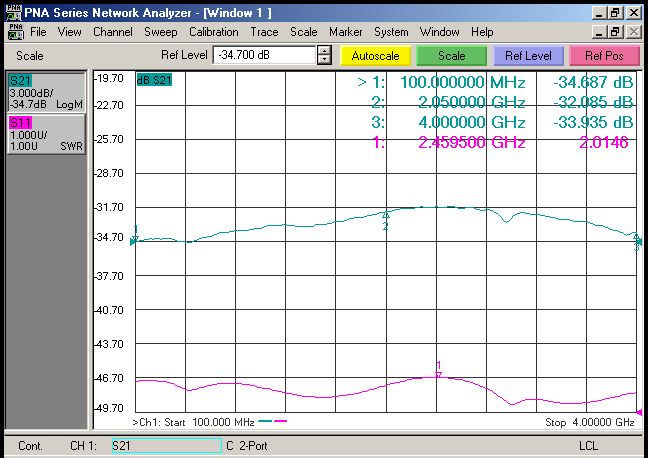

Hoto 1 LK-NYC04D-CL DML DBF Laser Hannun Matsakaicin Mitar Layi
Hoto 2 LK-NYC04D-UC DML DBF Laser Hannun Matsalolin Mitar Layi
● Hannun lankwasa na musamman

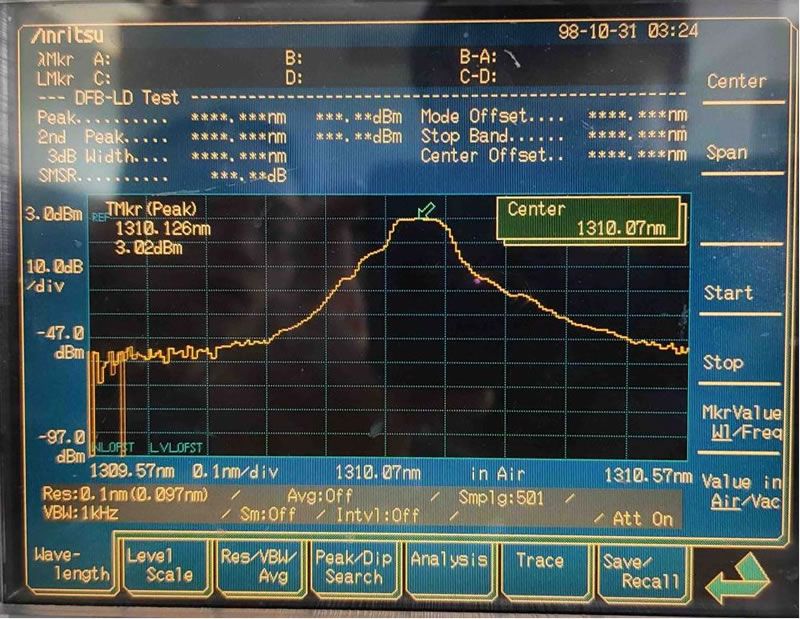

Hoto 3 LK-NYC04D DML DBF Laser Hannun Bakan Bakan
● Girman Unit: mm[inch]
Hoto 4 LK-NYC04D DML DBF Girman Mai watsawa
Mai haɗin RF: SMA
Mai Haɗin Wuta: J30J-9-ZKP
● Bayanin oda
Zane 1:
| model | Tsawon Wave na Musamman |
| UL | 1310nm ku |
| CL | CWDM (Tsawon igiyoyin zaɓi) |
Shafi na 2:
| model | Power |
| 00 | 1mW |
| 02 | 2mW |
| 04 | 4mW |
| 06 | 6mW |
Shet3:
| model | haši | ra'ayi |
| N | A'a | Flange |
| A | FC/APC | Daidaitaccen 9/125μm SM Fiber |
| P | FC / PC | Daidaitaccen 9/125μm SM Fiber |
Aikace-aikace
Antenna Remoting
Hanyoyin sadarwar salula da PCS
Analog RF hanyoyin watsawa
Bin-sawu, Telemetry, da Sarrafa
Sadarwar mara waya ta Broadband
