LK-D-SS-12-T Series Layin Jinkiri na gani & Na'urar kwaikwayo na gani
- Bandwidth zuwa 12GHz
- Matsayi mai ƙarfi mai ƙarfi
- Aikace-aikacen zafin jiki mai faɗi
- Low amplitude amsa
- Jinkirin lokaci na musamman
Samfur Description
Dogaro da fasahar photonics na microwave, jerin LK-D-SS-12-T na layin jinkiri na gani da na'urar kwaikwayo na gani suna ba da kyakkyawan aiki kuma ana amfani da su sosai a gwajin radar, sarrafa sigina, eriya mai tsauri, ƙirar eriya da gwajin amo lokaci. Na'urorin suna iya yin aiki da kyau a duk faɗin rukunin mitar L/S/C/X tare da ƙarancin sakawa, babban kewayon ƙarfi, keɓancewar lantarki mai ƙarfi, da ikon ɗaukar siginonin watsa sau uku marasa awo. Waɗannan fasalulluka sun sa ya dace don ingantacciyar siginar gani da microwave.
Technical dalla
Halayen Lantarki / Na gani
| siga | Darajojin ma'auni | Unit | ra'ayi | ||
| min | hankula | Max | |||
| Frequency Range | 1 | - | 12 | GHz | |
| Girman Kwanciya | - | ± 2 | ± 2.5 | dB | |
| Jinkirta Lokaci | 0.01 | - | 150 | us | musamman |
| Jinkirta Daidaito | -5‰ | - | +5‰ | - | |
| sa Loss | 0 | 20 | 30 | dB | musamman |
| Shigar da VSWR | - | 1.8 | 2 | - | |
| Fitowar VSWR | - | 1.8 | 2 | - | |
| Impedance | - | 50 | - | Ω | |
| Shigar da 1 dB Compression | - | + 13 | + 17 | dBm | |
| Rabon Ƙimar Siginar Siginar Ƙira | 60 | - | - | dBc | |
| Siffar hayaniya | - | 45 | 55 | dB | 5 mu, 25 ℃ |
| Aiki Zazzabi | -55 | - | + 85 | ℃ | Dubi Bayanin oda |
| Storage Temperatuur | -55 | - | + 85 | ℃ | |
| Dangantaka Jinkirta vs. Zazzabi | - | - | 7 | ppm / ℃ | |
| Saka Asarar vs. Zazzabi | - | 2 | 4 | % / ℃ | |
Bayanin Mai Haɗi & Samar da Wuta
| Fil | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| irin ƙarfin lantarki | NC | GND | + 12V | NC |
| Sanarwa na yanzu | - | - | 0.3 | - |
| Max Yanzu | 1 |

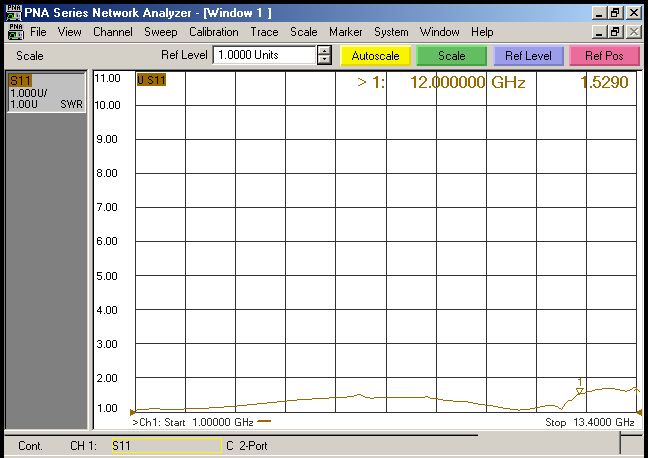

Hannun Amsa Na Musamman (25℃)
Girma da Fil (Raka'a: mm[inch])
Mai haɗin RF: SMA-K (Na musamman)
Mai haɗa DC: DE-9PS (Na musamman)
| samfurin Type | LK-D-SS-12-TG | ra'ayi | |||||
| Jinkirin lokaci (mu) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X (mm) | 37 | 50 | 65 | 80 | 90 | 110 | |
| samfurin Type | LK-D-SS-12-TP | ra'ayi | |||||
| Jinkirin lokaci (mu) | 8 | 35 | 60 | 80 | 110 | 150 | Karamin |
| X (mm) | 20 | 45 | 55 | 65 | 78 | 95 | |
odar Information
| samfurin Type | Pakete | Matakan inganci | Aiki Zazzabi | Storage Temperatuur |
| LK-D-SS-12-TGI | Standard | Matsayin masana'antu | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TGM | Matsakaici-maki | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| Saukewa: LK-D-SS-12-TGS | Matsayi na musamman | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-12-TPI | Karamin | Matsayin masana'antu | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| Saukewa: LK-D-SS-12-TPM | Matsakaici-maki | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TPS | Matsayi na musamman | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
ra'ayi: 1. T shine matsakaicin layin jinkiri wanda naúrar ke microsecond(mu).
Aikace-aikace
Gwajin Radar / daidaitawa
Sigin alama
Yakin lantarki
Tsarin eriya mai tsari
Eriya kwaikwayo
