LK-D-SS-06-T Series Layin Jinkiri na gani & Na'urar kwaikwayo na gani
- Bandwidth zuwa 6.5GHz
- Matsayi mai ƙarfi mai ƙarfi
- Aikace-aikacen zafin jiki mai faɗi
- Low amplitude amsa
- Jinkirin lokaci na musamman
Samfur Description

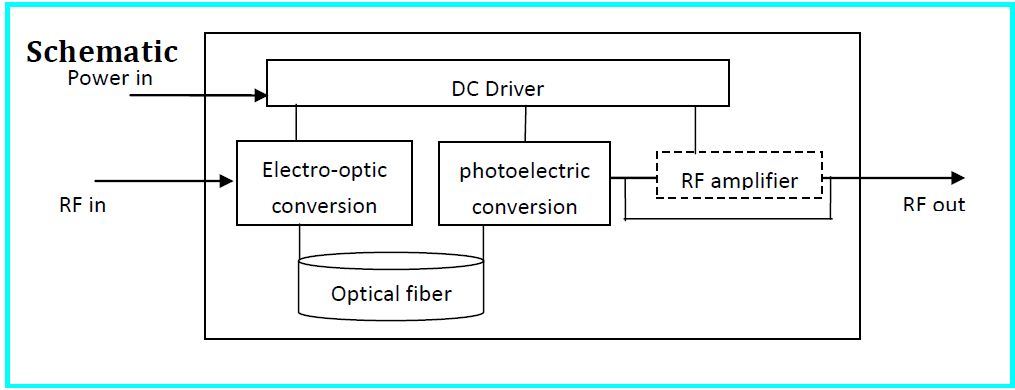

Yin amfani da fasahar fasahar hoto ta Microwave-Photonic, LK-D-SS-06-T jerin layin jinkiri na gani da na'urar kwaikwayo na gani an ƙera su don samar da ingantaccen aiki a aikace-aikace kamar gwajin radar, sarrafa sigina, ayyukan tsararrun eriya, kwaikwaiyon eriya, da gwajin amo na lokaci. Wannan tsarin ci gaba yana da ikon yin aiki a duk faɗin bandwidth P/L/S/C tare da ƙarancin sakawa asara, yana tabbatar da kewayon ƙarfi mai ƙarfi da keɓancewar lantarki mai ƙarfi. Hakanan yana goyan bayan siginar wucewa sau uku waɗanda ba za a iya ƙididdige su ba, fasalin da ya keɓance shi a fagen sarrafa siginar gani mai inganci da injin microwave.
Technical dalla
Halayen Lantarki / Na gani
| siga | Darajojin ma'auni | Unit | ra'ayi | ||
| min | hankula | Max | |||
| Frequency Range | 0.1 | - | 6.5 | GHz | |
| Girman Kwanciya | - | ± 2 | ± 2.5 | dB | |
| Jinkirta Lokaci | 0.01 | - | 150 | us | musamman |
| Jinkirta Daidaito | -5‰ | - | +5‰ | - | |
| sa Loss | 0 | 10 | 20 | dB | musamman |
| Shigar da VSWR | - | 1.5 | 2 | - | |
| Fitowar VSWR | - | 1.5 | 2 | - | |
| Impedance | - | 50 | - | Ω | |
| Shigar da 1 dB Compression | - | + 10 | + 15 | dBm | |
| Rabon Ƙimar Siginar Siginar Ƙira | 60 | - | - | dBc | |
| Hoto na hoto | - | 40 | 50 | dB | 5 mu, 25 ℃ |
| Aiki Zazzabi | -55 | - | + 85 | ℃ | Dubi Bayanin oda |
| Storage Temperatuur | -55 | - | + 85 | ℃ | |
| Dangantaka Jinkirta vs. Zazzabi | - | - | 7 | ppm / ℃ | |
| Saka Asarar vs. Zazzabi | - | 3 | 6 | % / ℃ | |
Bayanin Mai Haɗi & Samar da Wuta
| Fil | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| irin ƙarfin lantarki | NC | GND | + 12V | NC |
| Sanarwa na yanzu | - | - | 0.15 | - |
| Max Yanzu | 1 |

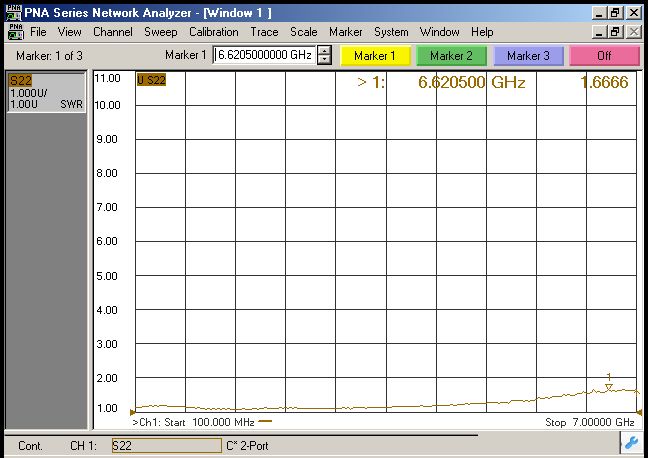

Hannun Amsa Na Musamman (25℃)

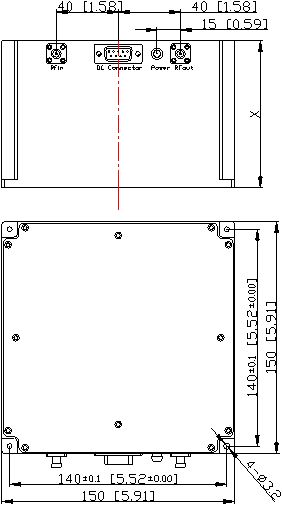

Girma da Fil (Raka'a: mm[inch])
Mai haɗin RF: SMA-K (Na musamman)
Mai haɗa DC: DE-9PS (Na musamman)
| samfurin Type | LK-D-SS-06-TG | ra'ayi | |||||
| Jinkirin lokaci (mu) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X (mm) | 37 | 50 | 65 | 80 | 90 | 110 | |
| samfurin Type | LK-D-SS-06-TP | ra'ayi | |||||
| Jinkirin lokaci (mu) | 8 | 35 | 60 | 80 | 110 | 150 | Karamin |
| X (mm) | 20 | 45 | 55 | 65 | 78 | 95 | |
odar Information
| samfurin Type | Pakete | Matakan inganci | Aiki Zazzabi | Storage Temperatuur |
| LK-D-SS-06-TGI | Standard | Matsayin masana'antu | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-06-TGM | Matsakaici-maki | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| Saukewa: LK-D-SS-06-TGS | Matsayi na musamman | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-06-TPI | Karamin | Matsayin masana'antu | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| Saukewa: LK-D-SS-06-TPM | Matsakaici-maki | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-06-TPS | Matsayi na musamman | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
Aikace-aikace
Gwajin Radar / daidaitawa
Sigin alama
Yakin lantarki
Eriya mai tsari mai tsari
Eriya kwaikwayo
